4 Megapixel Outdoor Dome Security Camera

Outdoor Dome 4 MP Security Camera

CV168

The CheckVideo 4 Megapixel Outdoor Dome Camera (CV168) is a complete video security solution that greatly streamlines installation while providing exceptional protection compared to traditional cctv systems. Featuring, patented, analytics-driven compression technology, the 4MP Dome security camera can record and transmit video using up to 70% less capacity resulting in reduced network and bandwidth costs.

Features

c-feat-icon-1

Adds built-in intelligent video analytics - The camera becomes a real video sensor, detecting persons and vehicles, dramatically reducing false alarms by up to 85% versus outdoor PIRs or cameras with builtin motion detection.

Long Range Detection

Vehicle detection 60 feet 400 feet. Person detection 8 feet to 240 feet.

c-feat-icon-2

HD video stream or is capable of processing HD video.

c-feat-icon-3

Built-in DVR recording - Records up to 30 days of HD video, eliminating the need for a separate external NVR or DVR.

IP-66 weatherproof - Includes an IP 66 weatherproof housing with onboard heater and built-in IR illumination.

Device is capable of capturing video both day and night.

3mm-9mm motorized P-Iris lens, 82Ā° (wide) to 33Ā° (zoom).

4MP Security Camera Description

The CheckVideo 4 Megapixel Outdoor Dome Security Camera (CV168) with built-in 24Ɨ7 video recording, eliminates the need for an external recorder. Featuring, patented, analytics-driven compression technology, the 4MP Dome can record and transmit video using up to 70% less capacity resulting in reduced network and bandwidth costs.

Featuring advanced video analytics technology, the outdoor dome 4mp security camera can differentiate people and vehicles from the normal motion generated by foliage and shadows, then instantly send an alert. The CV168 is part of the CheckVideo family of managed security solutions, and can be configured and viewed remotely by authorized users. Automated tamper detection, health checks and error recovery are included to ensure that security is never compromised. With Power-over-Ethernet connectivity, extreme low-light capability and built-in digital I/O, the CV168 combines simplicity and versatility in a compact package. The 4mp security camera system features one-click integration with the Cloud VMS, enabling a complete Cloud-based intelligent video security solution.

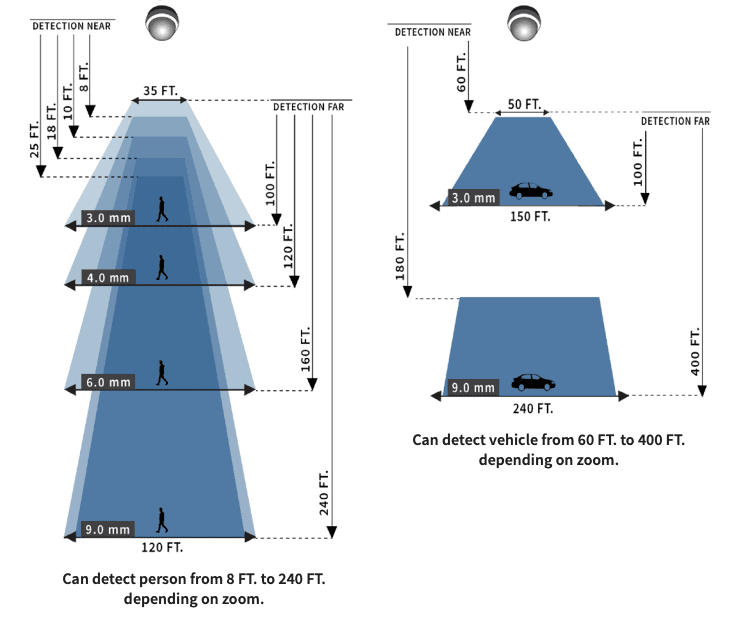

Detection Ranges

Benefits

CHECKVIDEO VMS
All CheckVideo solutions feature 100% Web-based video management functionality with no servers or software installation required.

VIDEO ALERTS
Pushes notifications of alerts based on analytics detections to central monitoring station, email addresses or smartphones.

VIDEO SEARCH ENGINE
Intelligent video search saves time by drilling down to the specific events of interest in seconds rather than hours.

AUTOMATED SYSTEM HEALTH MONITORING
The system issues proactive alerts in case of camera tampering, poor video quality or loss of communication.

Literature

CheckVideo 4 MegapixelĀ Outdoor Dome Camera

Outdoor Dome 4 Megapixel Camera Documentation

CV168 QuickInstall

Mounting Options

Mounting Options for CheckVideo Dome Cameras
